MATA Robotics

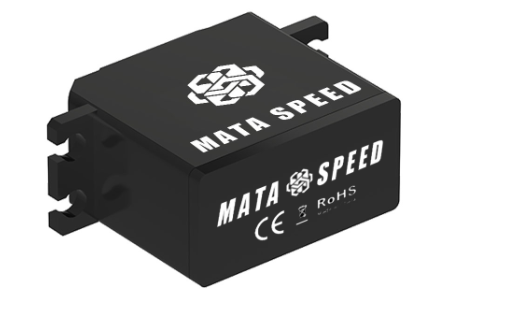

MATA Speed Servo

MATA Speed Servo

Regular price $68.00 USD
Regular price Sale price $68.00 USD
Sale Sold out
Quantity

MATA SPEED

A brushless servo built for speed without giving up control. Whether you need fast positional response or full continuous rotation, the Mata Speed brings brushless durability to your build.

Key Features:

  • Brushless motor for higher efficiency and longer lifespan than coreless or brushed alternatives
  • Dual mode operation. Use it as a precise positional servo with full 360 degree travel, or switch to continuous rotation mode
  • Fast response time of 0.08 sec per 60 degrees at 6V
  • 25 kg-cm of torque at 6V for snappy, controlled movement under load
  • Hardened 45# carbon steel gears with high frequency quenching for long term durability
  • Double bearing support for reduced wear and tighter tolerances
  • IP67 waterproof rating to handle dust, debris, and moisture on the field
  • Programmable via included programmer card

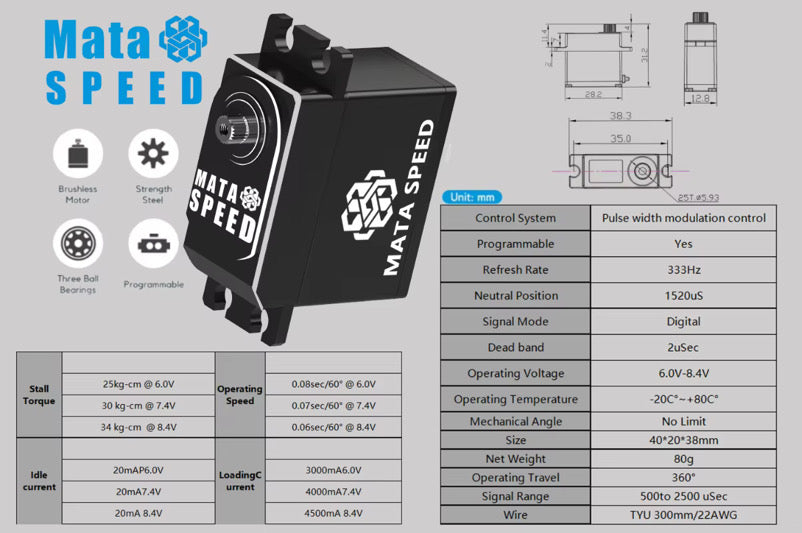

Specifications (at 6V):

  • Speed (no load): 0.08 sec/60 degrees
  • Torque: 25 kg-cm
  • Stall Current: under 4A
  • Mechanical Power: 4.2 to 5.7W under load
  • Weight: approximately 83g
  • Spline: 25T
  • Waterproof Rating: IP67
